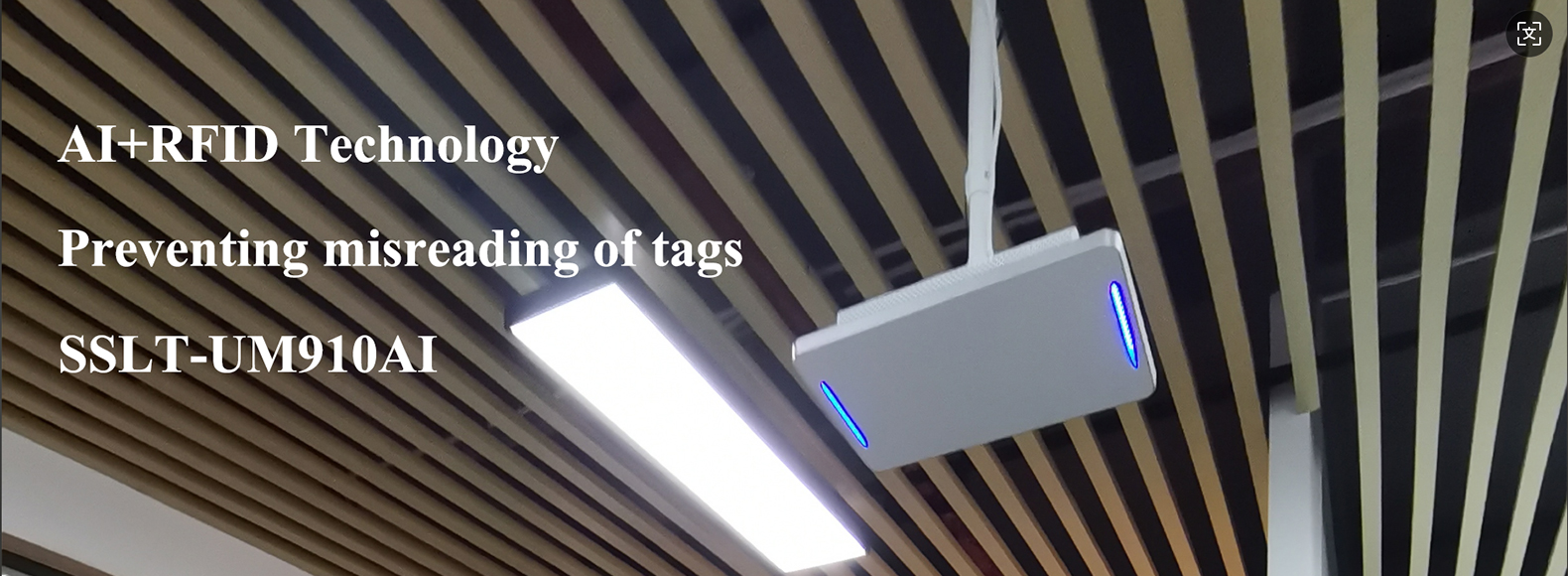

The UM910Ai ceiling-mounted intelligent access control system not only features RFID-based intelligent anti-theft and identification capabilities, but also achieves video flow statistics through the embedded AI visual camera vector human contour matching technology, and uses the regional static contour modeling algorithm to filter out the RFID tags of nearby displayed goods in the ceiling-mounted access control to avoid false alarms. The product is mainly used for entry and exit management in scenarios such as libraries/archives, warehousing, smart retail stores, and asset management.
Functional parameters;
1. RFID alarm and intelligent recognition function
2. AI visual recognition function for counting inbound and outbound passenger flow
3. AI modeling to filter out RFID tags at close range and avoid false alarms
4. Equipped with sound and light alarm function, alarm volume adjustable
5. Supports online and offline modes
6. Integrated design of RFID antenna and reader
7. Data visualization: Passenger flow and alarm recognition can be displayed through an external screen.
Technical Parameters:
1. Air Protocol: Supports EPC C1 G2 (ISO18000-6C) protocol
2. Output Power: 8-32 dBm (adjustable)
3. Antenna Gain: 10.5 dBi high read rate antenna
4. Reading Distance: 300 cm (adjustable)
5. Operating Frequency: 840 MHz - 960 MHz
6. Anti-misread Algorithm: AI visual algorithm
7. Power: ≤ 30 W
8. Installation Method: Ceiling-mounted, wall-mounted, or suspended (three types of brackets are optional)
9. Recommended Installation Height: 1.9 m - 3.3 m
10. Communication Interface: RJ45 network port, WIFI, HDMI, USB * 2
11. Power Input: AC 90 - 220 V (compatible with voltage standards of various countries)
